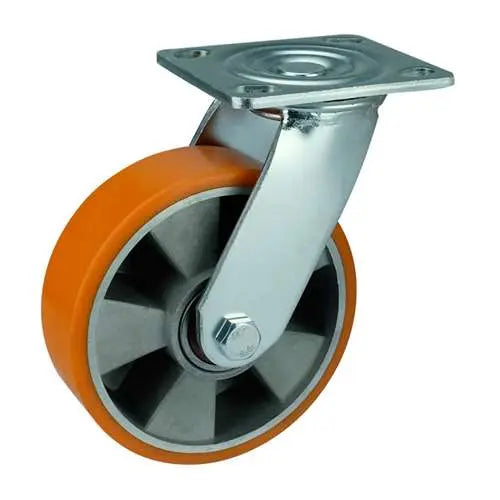

8" Inch Caster 992 lbs Swivel Aluminum and Polyurethane Top Plate

8" Inch Caster 992 lbs Swivel Aluminum and Polyurethane Top Plate

Item Name: 8inch-Swivel-Caster-016

Wheel Diameter: 200mm

Wheel Width: 50mm

Wheel Diameter: 8" Inch = 200mm

Overall Height: 240mm

Overall Height Inch: 9.449"

Mounting Type: Top Plate

Top Plate Size: 115mm x 100mm

Hole distance: 72mm x 85mm

Wheel Core: Aluminum and Polyurethane

Tire: Aluminum and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 992 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Don't think too much, use 8inch-Swivel-Caster-016 to get your DIY move and manuver around. This caster is rolled on a wheel that has 200mm diameter/7.874" inch inches. The wheel has a width of 50mm=1.969" inch. The overall height of the caster is 240mm or 9.449" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 115mm x 100mm with the holes distance of 72mm x 85mm. The Double ball beaing design will enable the Aluminum and Polyurethane tire to roll easily with a core made of Aluminum and Polyurethane. Each caster will carry the load of 992 lb and is Swivel type. The temperature range is -40 to 180 F. Enjoy our 8inch-Swivel-Caster-016, we wish all the best in your project.
